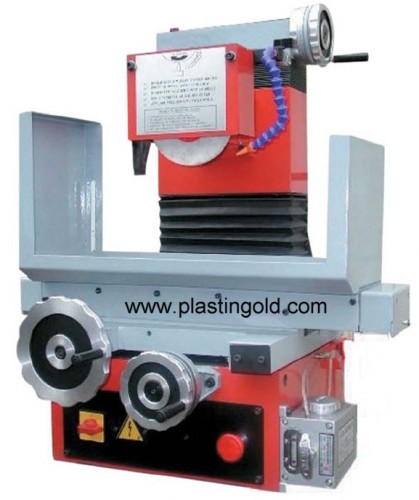

Mod. 220x115
Click for a full size photo
Click for a full size photo
Click for a full size photo
Click for a full size photo
Click for a full size photo
Click for a full size photo
Click for a full size photo
Tecnical dates:
|
Lungitudinal manual travel
|
mm
|
220
|
|
Trasversal manual travel
|
mm
|
115
|
|
Vertical manual travel
|
mm
|
285
|
|
Grinding wheel diameter
|
mm
|
150
|
|
Grinding wheel tikness
|
mm
|
10
|
|
Hole grinding wheel diameter
|
mm
|
25
|
|
Grinding wheel r.p.m.
|
n°
|
3750
|
|
Main power at 1500 r.p.m.
|
kw
|
0,38
|
|
Machine weigth
|
kg
|
150
|
Dimensions with packing
|
|
|
|
Hight
|
mm
|
1000
|
|
Width
|
mm
|
1000
|
|
Length
|
mm
|
1000
|
|
Delivery time
|
days
|
20
|
|
Price
|
€
|
5.980,00
|
.
Acccessories:
|
|
Magnetic plate 180x100x65 mm price € 500,00
|
|
Swivel vice price € 1.296,00
|
|
|
Balancer price € 234,00
|
|
Grinding wheel former Price € 1.500,00
|
|
|
Punch grinding device from diam. 6 to 40 mm price € 420,00
|
|
Cylindrical punch grinder price € 600,00
|
|
|
Demagnetizer price € 276
|
|
Diamond
|
|
|
Cabinet base price € 528,00
|
|
Cooling equipment price € 420,00
|
|
.jpg)
|
Punch grinding device from diam. 30 to 90 mm price € 540,00
|
.jpg)
|
Flat chuck to clamp punches till 20 mm price € 528,00
|
|
